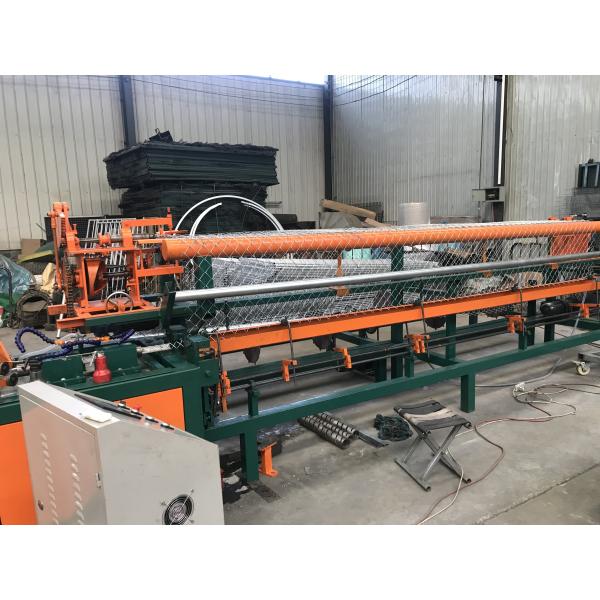

2 feeder fully automatic chain link fence machine with compact roll
Our Advantage:
1. We have more than 12 years of experience producing chain link machine. The machine can running very well.2. You can use our machine directly once you get electricity. No need to connect wires
or adjust the machine. Which can save your time and overseas service cost.3. We use Servo Motor on the machine. As a result, the machine can running very fast and also you can adjust many things through the PLC.4. We using big and thick frame tube on the machine. Moveover, E-coating will be used as the machine surface finish. As a result, the machine produced by us is very strong and really beautiful.
5. Two set mold for free.
6. Mechanical automatic roll wire mesh.
7. The wire mesh width is adjusted automaticlly.
8. The machine is controlled by the touch screen.
Welcome you to contact us to get our machine photos or videos,
2 worms chain link fence machine with compact roll
| 30 × 30 mm (Production Capacity Sq. mtr/ hr) approx | 45 (Sq. mtr/ hr) |
| 100×100mm(Production Capacity Sq. mtr/ hr) approx | 200 (Sq mtr/ hr) |
| Min & Max wire (mm) | 2mm & 4mm |
| Mesh size in mm | From 30 ×30 mm to 100 × 100mm |
| Hz Power | 50Hz,60Hz,etc(According to your requirement) |
| Volts Power | 220V,380V,415V,440V,etc(According to your requirement) |
| Total Power | 11Kw |
Chain Link Machine can weave metal of various kinds materials.
Its raw material are mostly low carbon steel wire, stainless steel wire,
aluminum alloy wire,galvanized wire, 65 Mn steel wire, PVC coated wire, etc.
PLC:
Through th PLC you can adjust many things. -----Chinese or English.
If you are interested in this kind of chain link machine, please feel free to contact us to get the photos and videos.
